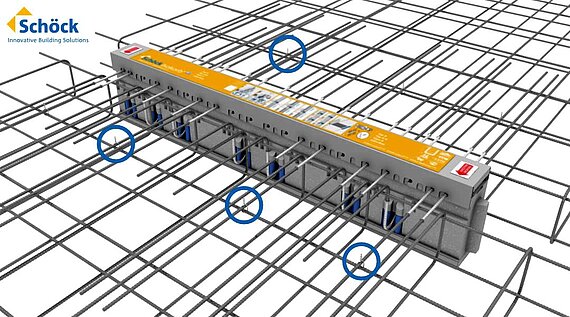

The Schöck Isokorb® T type K with compression module HTE-Compact® and 80 mm insulation thickness is a load bearing thermal break element for free cantilevered balcony construction. It transfers negative moments and positive shear forces.

The Schöck Isokorb® T type K of shear force variant VV transmits negative moments, positive and negative shear forces.

Avoiding effects of the thermal bridge

Read more about the effect of thermal bridges in our Thermal bridging portal.


Effective thermal break
Between external reinforced concrete components and the building
BBA Certification
Technically approved and certified by the BBA
Independently verified
A thermal modelling study was undertaken by the OISD (Oxford Brookes University)
Fire resistance class REI120
Also available in fire resistance class REI120
Compression module HTE Compact®
For simple installation on site or at the prefabricating plant
Detailed planning literature
Technical Information, Certificates, Approvals, the Thermal Bridging Portal and Installation instructions
Standardised
Available in standard heights of 160 mm – 250 mm; other heights and constructions available on request

Technical Information

Technical Information Schöck Isokorb® T type K

pdf, 1,63 MB

(30/05/2022)

read now

download now

Installation instructions

Installation Instruction Schöck Isokorb® XT/T type K-U

pdf, 4,50 MB

(13/06/2023)

read now

download now

All Downloads Schöck Isokorb® T type K

This is an animation to show the concept and installation of Schöck Isokorb® T type K thermal break connection for reinforced concrete to reinforced concrete.
