Reinforced concrete – reinforced concrete

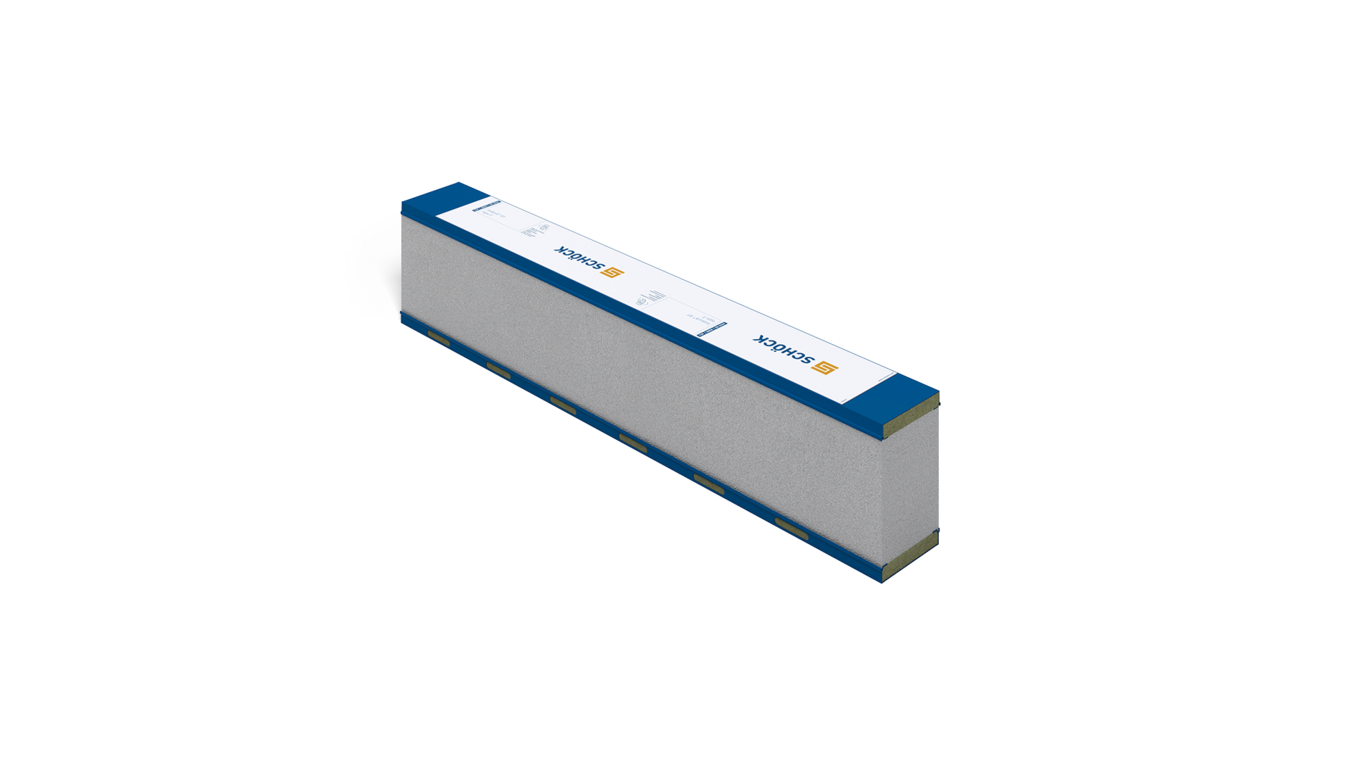

Isokorb® XT
type Z

Thermal insulation element as supplement for different installation situations and fire protection requirements. The element does not transfer any forces.

Insulating element

120

Thermal insulation element

Tested impact sound characteristic values

Cross-sectional view of installation

Downloads

CAD / BIM libraries

Outstanding thermal insulation
With 120 mm thick insulating element
Reliable impact sound characteristic values
Tested according to new EAD 050001-01-0301 (adopted)
Complete system
For a continuous connection line in combination with other Isokorb® elements
Convenient design
Load-bearing thermal insulation elements and shear force dowels for the structural components balcony, parapet and reinforced concrete balustrade can be conveniently sized with the user-friendly Schöck Scalix® web-based software.
Fire protection
The Z type has the fire performance classification EI 120
Can be used retrospectively
For transport anchor gaps in precast balcony units for example
Standardised
Available in heights from 160 to 250 mm and lengths of 100, 150 and 1000 mm; other sizes and engineering designs are available on request

Isokorb® XT type Z

Isokorb® XT
type Z
